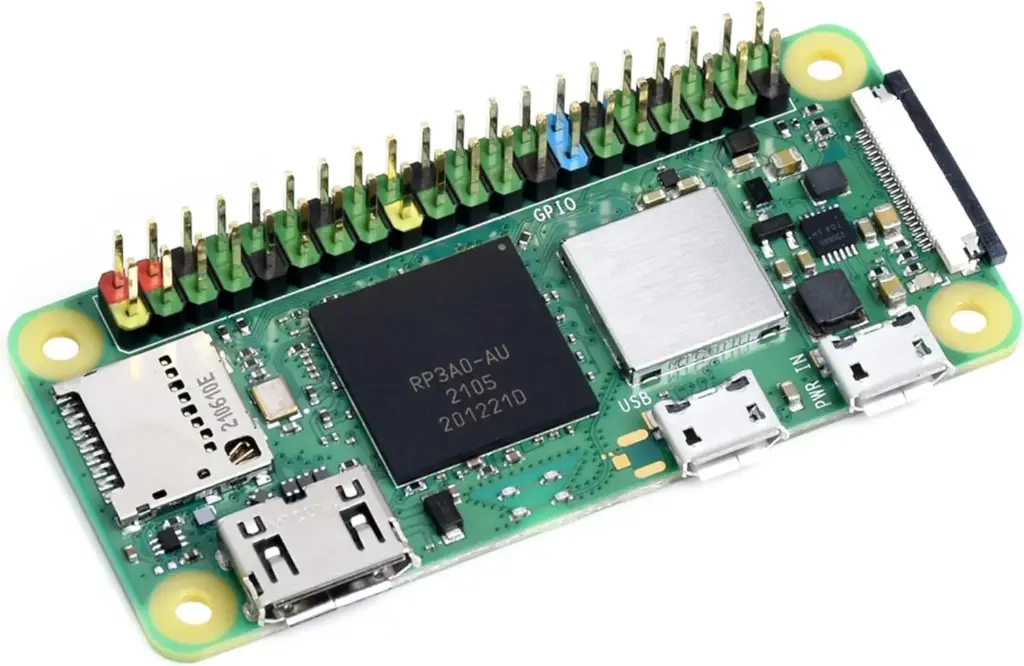

SBC / Raspberry Pi Zero 2 W Header Colored / 1GHz Quad-Core Arm Cortex-A53 CPU, WiFi & Bluetooth 4.2 BLE

Overview

Introducing the Raspberry Pi Zero 2 W with Color‑Coded GPIO Header—a drop‑in successor to the original Zero form factor offering up to 5× multi‑threaded performance in a 65 × 30 mm board with pre‑soldered 40‑pin header (color‑coded for easy pinout). Perfect for compact embedded systems, Pi‑Hole servers, headless IoT devices, portable compute modules, and display‑embedded applications. Compatible with most existing Zero cases.

Key Features & Benefits

• 1 GHz Quad‑Core Arm Cortex‑A53 CPU (Broadcom BCM2710A1, RP3A0 SiP)
  Up to 40% faster single‑core and 5× faster multi‑threaded compute than original Zero W, while retaining ultra‑compact size.
• 512 MB LPDDR2 Memory for lightweight multitasking, even with GUI and browser.
• 2.4 GHz 802.11 b/g/n Wi‑Fi + Bluetooth 4.2 / BLE with integrated antenna—ideal for headless IoT, wireless streaming, or BLE peripherals.
• Mini HDMI output & USB 2.0 OTG port (micro‑USB)—supports displays, keyboard, storage, or USB gadgets.
• CSI‑2 camera connector & microSD slot for flexible imaging or firmware boarding solutions.
• 40‑pin GPIO header footprint: you can choose from an unpopulated GPIO (Zero 2 W), or the factory‑soldered color‑coded header (Pi Zero 2 WH) for intuitive wiring.
• Color‑Coded Header Scheme: Pins are clearly marked—Red = 5 V, Yellow = 3.3 V, Black = GND, Blue = DNC, Green = GPIO—to simplify prototyping.
• Compact Form Factor (65 × 30 mm)—compatible with existing Zero cases and HAT add‑on boards.
• Production Lifetime Through 2030, ensuring long‑term availability and supply consistency.

🛠️ Technical Specifications

* Actual draw depends on workload and attached USB devices. Always use an adequate 5 V DC power supply rated 2.5 A.

What’s Included

• Raspberry Pi Zero 2 W (unpopulated header) or Raspberry Pi Zero 2 WH (pre‑soldered color‑coded GPIO header)
• MicroSD slot (card not included)
• Mini HDMI port, microUSB OTG & power port, CSI‑2 camera connector
• Product Brief / Quick‑start pamphlet

For kits: optional case, adapter cables, heatsink, power supply, or microSD card often sold together.
