DSP / JDI / TX14D204VM0BAA

DSP / JDI / TX14D204VM0BAA

A normally black IPS LCD with VGA resolution, LVDS input and a 1,000 cd/m² reference backlight for compact display integration.

FPD part number: DSP-01014-00

View specifications and documentation ↓

KOE JDI 640 x 480
  • Display Technology
  • Backlight Brightness
  • Operating Temperature Grade
  • Panel Type
  • Display Manufacturer
  • Display Size (Diagonal)
  • Display Aspect Ratio
  • Display Resolution
  • Brightness Range
  • Display Interface
  • Touch Technology
  • NVIS Mode
  • Product Lifecycle

Available by quotation. Tell us the specifications, quantity, and delivery requirements for your project.

Request a Quote

Pricing, availability, delivery, and applicable terms are confirmed in your quotation. Terms of Use

Specifications

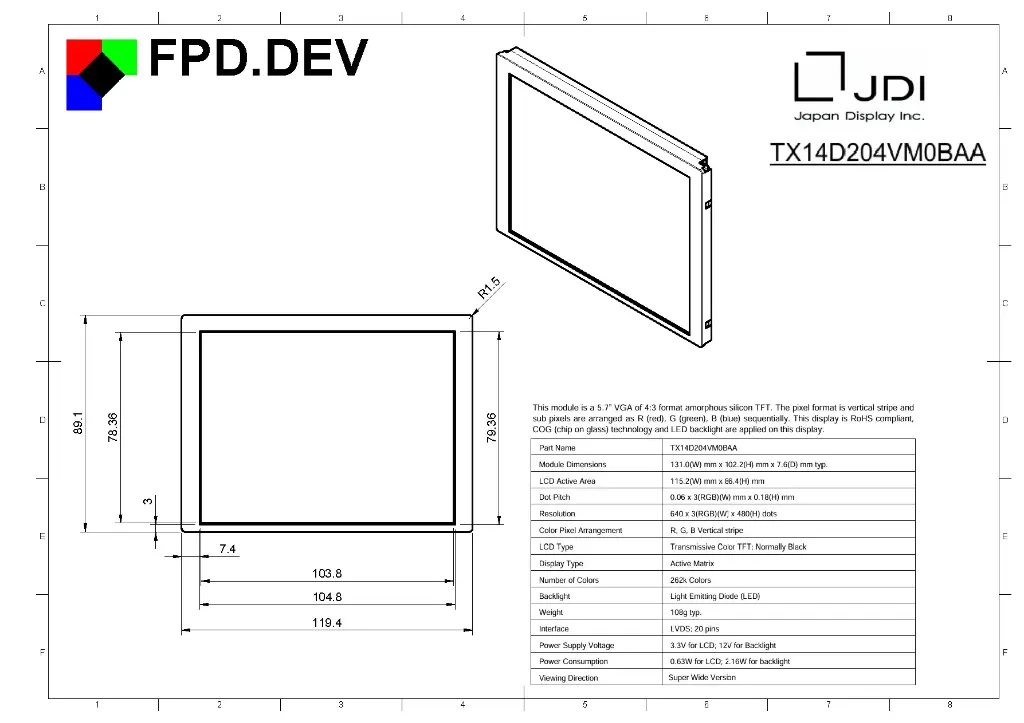

JDI TX14D204VM0BAA — IPS LCD

Manufacturer / modelJDI / TX14D204VM0BAA
TechnologyTransmissive, normally black IPS TFT-LCD
Resolution640 × 480 pixels
Active area, W × H115.2 × 86.4 mm
Outline, W × H × D131 × 102.2 × 7.6 mm
Luminance1,000 cd/m² reference
Contrast ratio1,000:1 reference
InterfaceLVDS, 18-bit RGB, 20 pins
BacklightLED
Operating temperature−30 to +80 °C
Storage temperature−30 to +80 °C

Integration notes

Use the exact TX14D204VM0BAA specification and revision for electrical design, connector pinout and mounting. High luminance alone does not establish sunlight readability of the assembled display; account for front-surface reflections and the optical stack.

Documentation

Discuss this display

Specifications

Backlight Brightness Daylight Readable, High Bright, Ultra High Bright, Dimming Supported, Wide Dimming Range
Display Manufacturer JDI, Hitachi, KOE
Product Lifecycle Active, FPD.DEV Supported, Replacement Available, Obsolete, Legacy Twin Available
Display Technology TFT LCD
Operating Temperature Grade Commercial / Indoor: 0°C to +50°C
Panel Type TFT
Display Size (Diagonal) 5.0-6.9 in
Display Aspect Ratio 4:3
Display Resolution VGA / 640x480
Brightness Range 1000-1499 cd/m2
Display Interface LVDS
Touch Technology No Touch
NVIS Mode No NVIS
